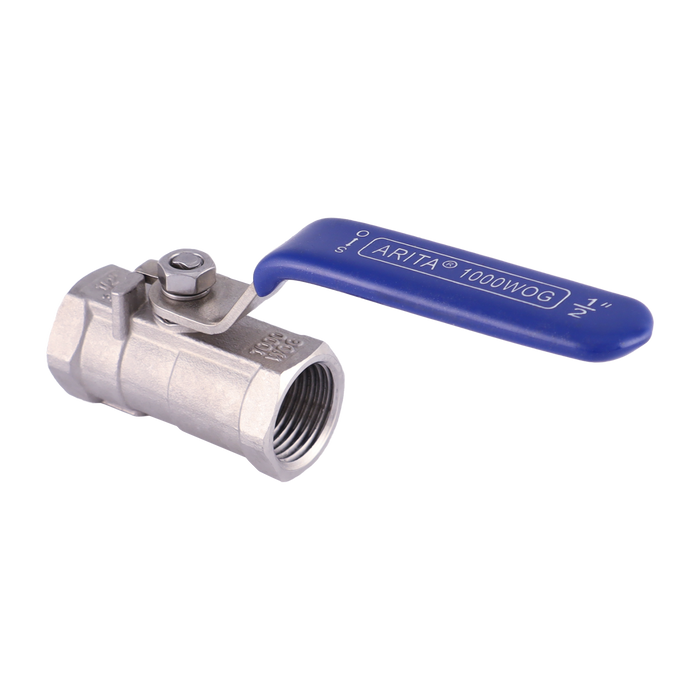

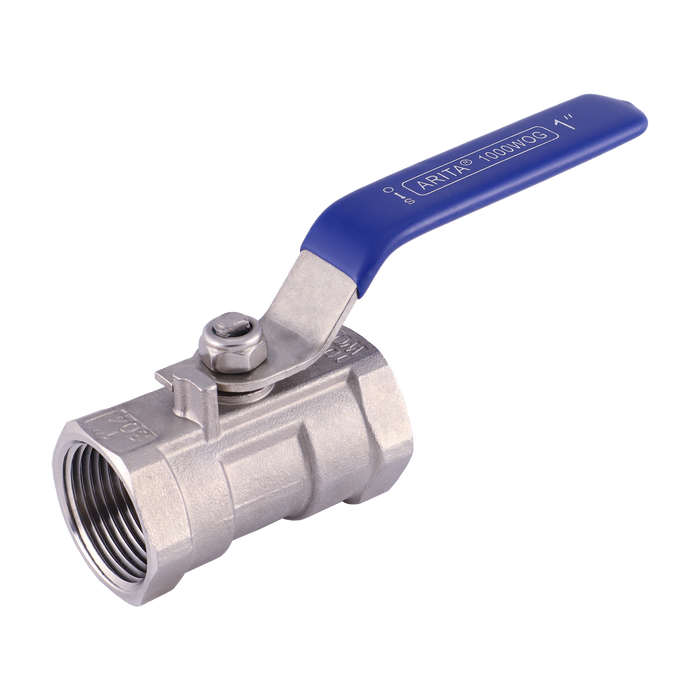

1 PC Body Ball Valve WOG 1000PSI Thread End
1 piece uni-body ball valve by Arita is designed for process flow control in general service up to 1000 PSI and working temperature at the range of -20°F to 410°F. Floating ball design ensures tight closure when valve is at closed position as upstream pressure pushed ball towards valve seat to provide no leakage internally. 1 piece body design has a reduced port, also known as standard port, which the reduce flow size down by one size.
Design: 1 Piece Body
Pressure Rating: 1000 PSI
Port: Reduced Port
Body: ASTM A351 CF8
Ball: SS304
Stem: SS304
Seat: PTFE
Packing: PTFE
Connection: NPT
Technical Datasheet
